_Sidi-Brahim Mosque, El Atteuf, M’Zab Valley_

On a postcard to his brother, Le Corbusier wrote: “Arabic architecture is tender and humane, dignified and filled with calm and beauty”.

In the 11th century, the Mozabites, masters of islamic art and architecture, founded in the M’Zab Valley, in the Saharan desert, an oasis comprising of seven settlements, El Atteuf, Mélika, Bou-Noura, Beni-Izguen, Guerra, Bériane and Gherdaia, today a UNESCO world heritage site. The buildings are of great simplicity and beauty, and have captured the interest of modern architects. Just outside the walls of El Atteuf lies the Sidi-Brahim Mosque, which so fascinated Le Corbusier during his travels in Algeria, that he is said to have been inspired by its shape and proportions, as well as its use of natural light and ventilation, when designing the chapel of Notre-Dame-du-Haut in Ronchamp.

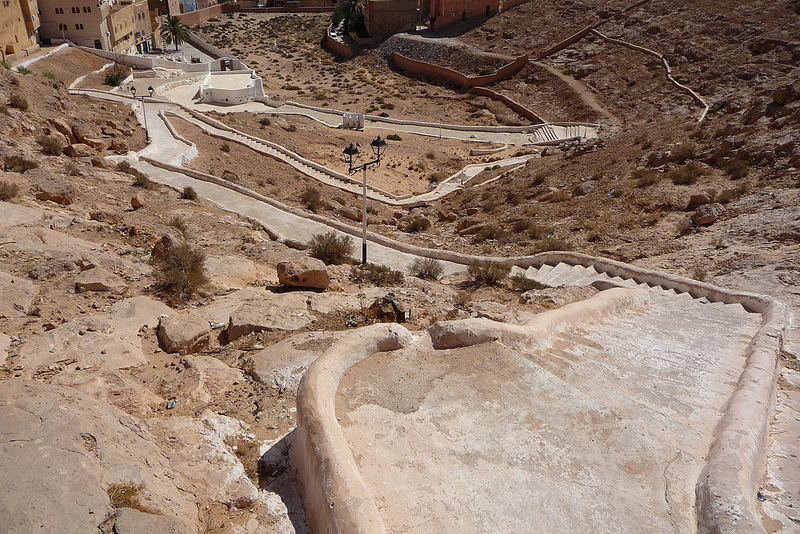

03.Sidi-Brahim-Mosque_view w ElAtteuf_photoMaxRoecker

Sidi-Brahim Mosque with El Atteuf in the distance, image: Max Röcker

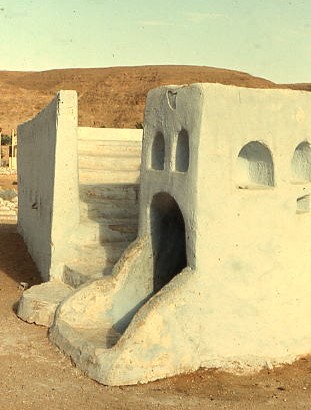

03_Sidi-Brahim-Mosque_exterior_MGBernard2

Entrance, image: M Bernard

Built next to the tomb of Sheik Brahim, this simple, almost abstract, whitewashed building stands in stark contrast to the red earth of its surroundings. It is a funerary mosque, meant for families who share common descendants. The mosque was built from locally available materials. Stone for the load bearing walls and columns, palm trunks for the beams and rafters, and embedded palm trunks for the arches, giving each a slightly different shape. The structure is covered with lime mortar applied by hand or with palm fronds. The entire external and internal surfaces are whitewashed for weather protection, making it a brilliant contrast with the ochre of its surroundings.

The structure comprises of a prayer hall giving access to small circular chamber set half underground and an upper room for the Sheik set halfway up the walls. The roof of the principle space in the interior of the mosque (the prayer hall) is supported by arc spanned columns. Recesses in the walls are used occasionally to accommodate items such as oil lamps. Outside is an area for prayer and the cemetery.

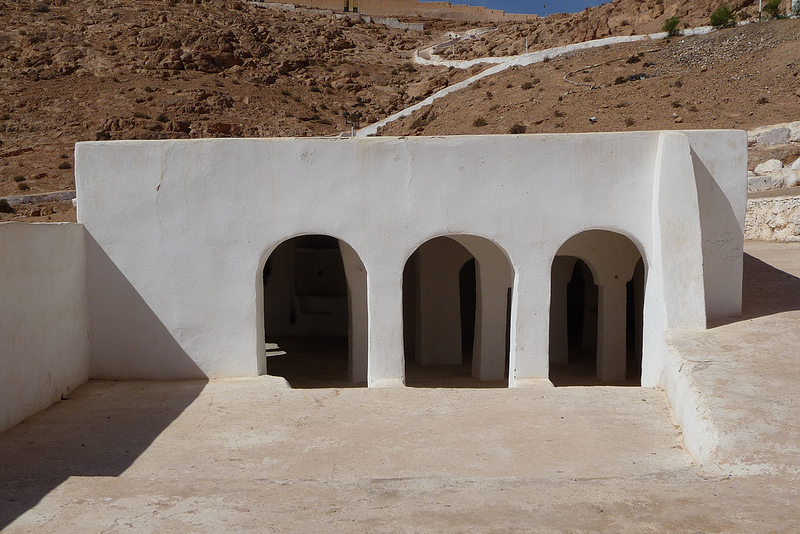

03.Sidi-Brahim-Mosque_exterior_photoMaxRoecker

Outdoor prayer area, image: Max Röcker

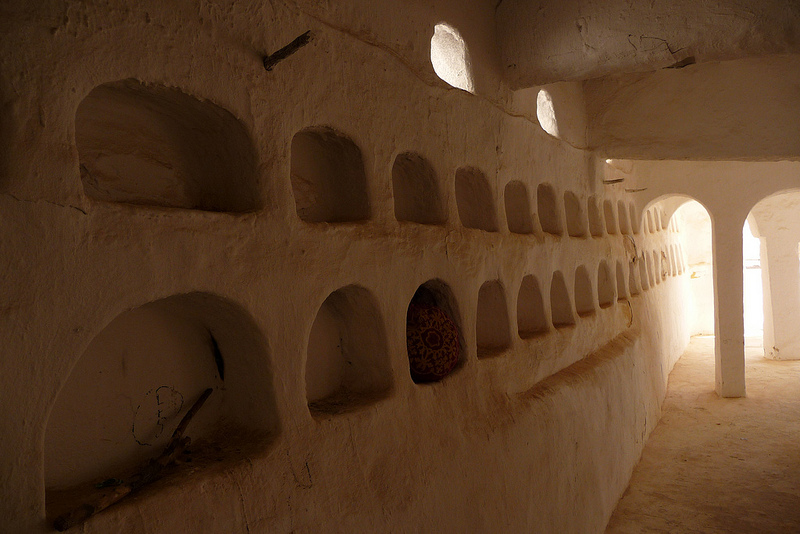

03.Sidi-Brahim-Mosque_interior1_photoMaxRoecker

Prayer hall, image: Max Röcker

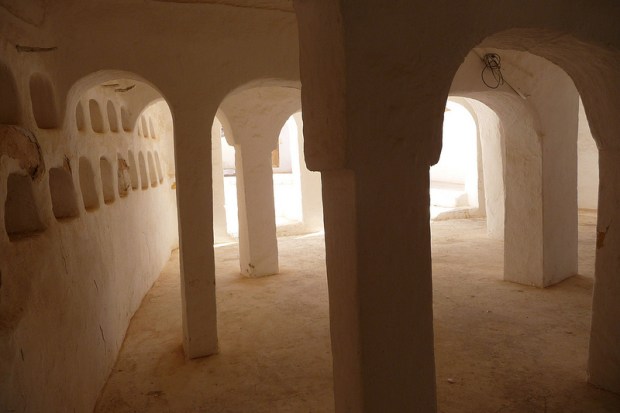

03.Sidi-Brahim-Mosque_interior2_photoMaxRoecker

Prayer hall, image: Max Röcker

The drawings of the Sidi-Brahim Mosque below formed part of the successful application in 1981 for the inclusion of the M’zab Valley into the list of UNESCO World Heritage Sites. Special thanks to Lucile Smirnov from ICOMOS Documentation Centre (International Council on Monuments and Sites), for patiently photographing the plans for me.

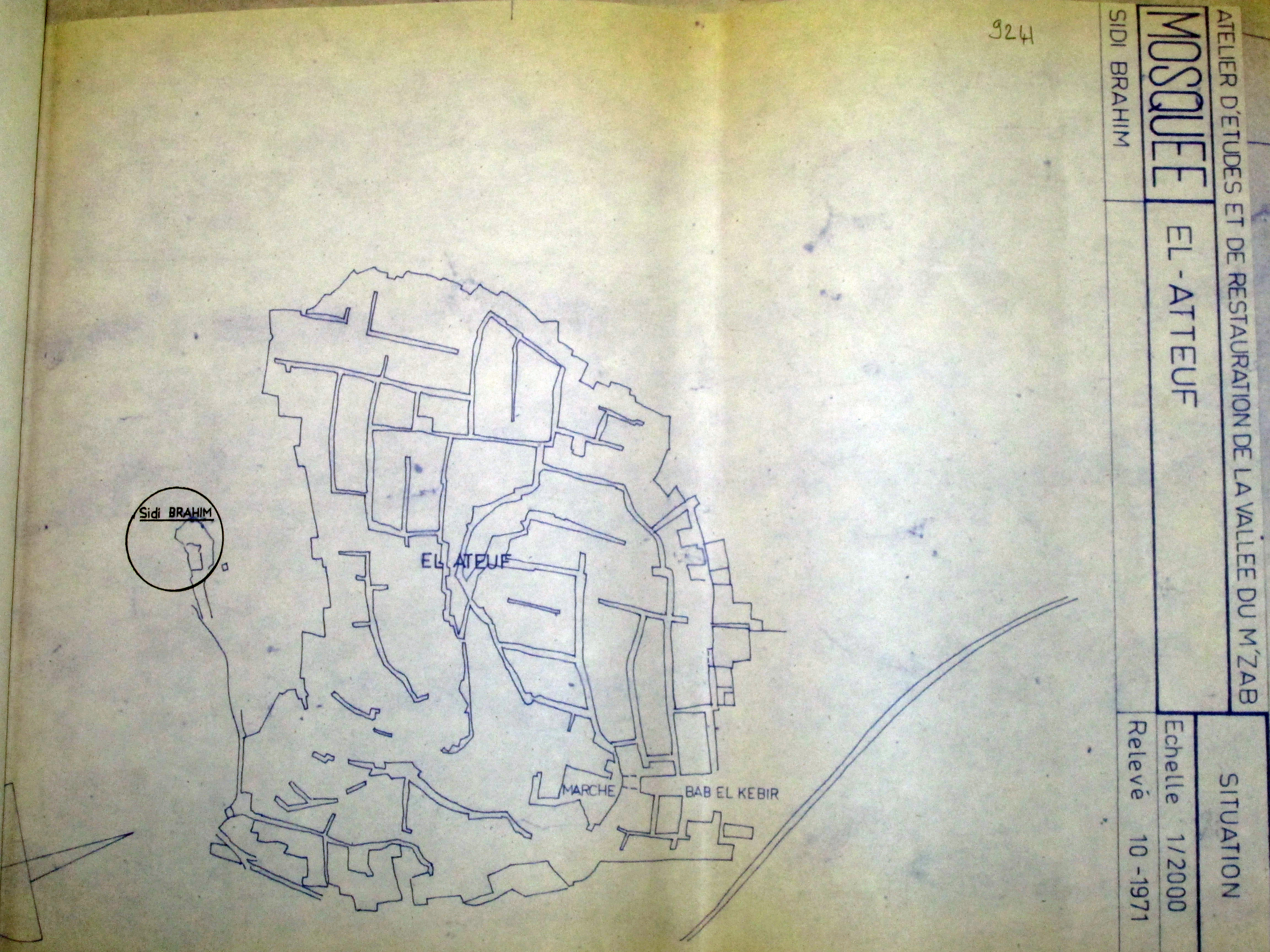

03.Sidi-Brahim Mosqu_UNESCO_site plan

Site Plan of Sidi-Brahim Mosque

03.Sidi-Brahim Mosqu_UNESCO_ceiling plan

Plan of Sidi-Brahim Mosque

03.Sidi-Brahim Mosqu_UNESCO_exterior elevations

Exterior Elevations of Sidi-Brahim Mosque

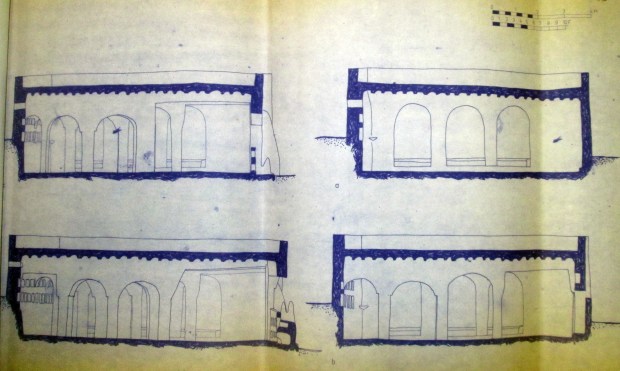

03.Sidi-Brahim Mosqu_UNESCO_section elevations2

Sectional Elevations of Sidi-Brahim Mosque

03.Sidi-Brahim Mosqu_UNESCO_section elevations1

Sectional Elevations of Sidi-Brahim Mosque

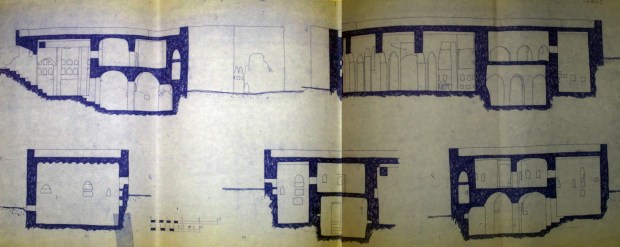

03.Sidi-Brahim Mosqu_UNESCO_section elevations7

Sectional Elevations of Sidi-Brahim Mosque



Chapel of Notre-Dame-de-Haut by Le Corbusier:

03_Ronchamp_Plan

Plan of Ronchamps

03_Le Corbusier_Ronchamp_interior_photo Paul K

Interior

03_LeCorbusier-Ronchamp_photo  Paul Koslowski 1997

Notre-Dame-du-Haut chapel by Le Corbusier, photo: Paul Koslowski
